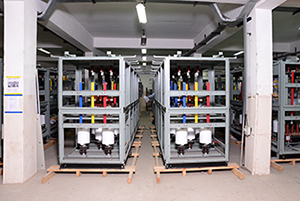

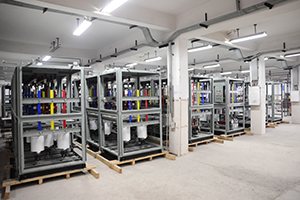

We are one of the prominent manufacturer, exporter and supplier of PCC’s, MCC’s, Control Desks, AC/DC drive Panels, Soft Starter Panels, Feeder Pillars, APFC panels, Distribution Panels, PLC Based Panels, Distribution Boxes.

These products are in great demand for the following reasons:

Durable finish standards
Reliable Quality
Trouble-free performance
Compliance with all the Indian/International standards
Easily serviceable

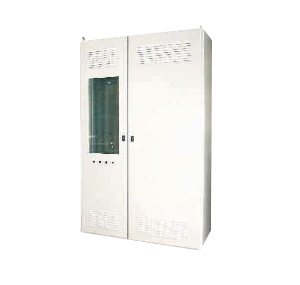

'D' SERIES PANELS

The most versatile design meeting all possible requirements is available in this version
D2.5 Version is the most versatile workhorse patronized for PLCs, normal Drive Panels nd Control Panels.
D3 Version takes care of all Heavy Duty requirements where very heavy AC/DC drives or heavy Bus barring is needed
Largest range of standard sizes
Welded frame structure of multi-folded steel members ensures rigidity. However, bolted structure also available on request without loss of any feature Removable Doors and Covers.
Several top end ventilation solutions to enable you choose the best suited
Gland plates in any thickness as needed, including aluminum
Modular roll-on plinth permits shifting of Panels at site on rollers/Pipes where over-head crane facilities are not available at the time of installation. Lifting hooks, in any case, are provided
30mm ground clearance of doors does not force the need of the plinth (as in most contemporary designs), thus offering better economy wherever situation permits
Adjustable support members enriched into a wide variety and range over the years
Imported 3 point locking system with extruded guide rods and ramp shoe
Largest surface area of GP Mounting Plate than any other contemporary design
Several alternatives for Mounting plates gives the option to choose most suited
Rigid structure to withstand heavy trafo, breaker or drive
Strong design to withstand transport jerks, speed breakers and even impacts

Following variants in D2 version are readily available from us to the delight of our customers.

Fixed Sides with Rear Door/Cover having option of removable or fixed Top Cover
Fixed Rear with removable Sides retaining the option of removable/fixed Top
Fixed Sides as well as Rear, typically suited as Cabinets for Machine Tools

ACCESSORIES & SPARES SHOWING PICTURES

Plinth - Conventional

Material : Corner 2.5mm, Cover 1.25mm, Black

Height : 75mm; 100mm; 150mm & 200mm

Ex. 001 100B Plinth Conventional 100mm height Black Powder Coated Width & Depth as per panel size

Part # 001 height finish

Plinth - Heavy Duty

Material : 2.5 mm - reinforced, Black

Height : 75mm; 100mm; 150mm & 200mm

Ex. 002 150B Plinth heavy duty 150mm height Black Powder Coated Width & Depth as per panel size

Part # 002 height finish

Roll on Plinth where over head crane facility not available at site

Mounting Strip

Material : 2mm, Powder Coated

Part # 003 height finish

For component mounting across full width of Enclosure

Height : 40mm, 80mm, 100mm, 120mm, 150mm, 200mm, 250mm etc

Ex. 003 200p Mounting Strip 200mm height Powder coated in Panel shade Width as per panel size

Mounting Plate

Material : 2.5 mm / 3mm GP

Part # 004 height finished

full width Mounting Plates in Gp finish covering total available height. Partial height Mounting Plates assembled

Ex. 004 FHtG Mounting Plate Full Height in GP(For partial heights specify in mm) Width as per panel size

Filter Mounting Plate

Material : 2.5 mm/3mm GP

Part # 005 height finish

Provides uninterrupted mounting surface when Panels are bayed together

Ex. 005 FHt G filler Plate full Height in GP (for partial heights specify in mm) Width 62mm

Side Support 25 mm & 30mm

material: 2.5 mm GP or Powder Coated

Part # 006 type finish

Versatile depth-wise component used for several applications such as supporting Mounting Plates/Side Plates/Cable support etc

Ex. 006 030 p Side Support 30mm Powder Coated in panel shade Depth as per panel size

Side Stiffener 60mm & 80mm

Material : 2.5 mm GP or Powder Coated

Part # 007 type finish

Depth wise support for mid height mounting of ACBs etc

Ex. 007 060 p Side Stiffener 60mm Powder Coated in Panel shade Depth as per panel size

Bus Bar Support

Material : 2.5mm/3mm GP or Powder Coated

Part # 008 thickness finish

025 = 2.5mm; 030 = 3mm

Provides easy yet rigid supports for Busbar assembly

Ex. 008 025P Bus bar Support 2.5mm thickness Powder Coated in Panel shade Depth as per panel size

Vertical Pillar 50mm & 70mm

Material : 2.5 mm GP or Powder Coated

Part # 009 type finish

Versatile mid depth vertical component

Ex. 009 050P Vertical Pillar 50m Powder coated in Panel shade

Height : as per panel size (for partial heights specify in mm)

Trafo Mounting Channel

Material : Light duty 2.5mm, Black

Standard 3mm, Black

Heavy Duty 3+3mm, Black

Part # 010 type finish

LtD = Light Duty; HtD = Heavy duty

Innovative design that eliminates need for any drilling for Trafo mounting Sizes available for light duty, standard and very heavy trafos up to 400Kgs

Ex. 010 Std B Trafo Mounting Channel Standard type in Black Powder Coated Width as per panel size

Finger Guard 100mm & 200mm

Material : 1.25mm, Powder Coated

Part # 011 height finish

Excellent design for ventilation though roof confirming to IP43

Ex. 011 200 P Finger Guard 200mm Powder coated in Panel shade Width & Depth as per panel size

Raised Canopy 75mm & 100mm

material : 1.25mm, Powder Coated

Part # 012 height finish

An alternative solution where larger air flow needed. IP20 or IP41

Ex. 012 075 P raised Canopy 75mm Powder coated in Panel shade Width & Depth as per panel size

Drawers

Material : 1.50mm, Powder Coated

Part 013 width finish

Pull out drawers on slides for Key Board & Mouse

Ex. 013 400P Drawer 400mm width Powder Coated in Panel shade Depth to suit the requirement

Document Pocket

Material : 1.50mm, Powder Coated

Part # 014 file type finish

Flf = Flat File; BoF = Box File

Size suitable for Flat File or Box file

Ex. 014 FIF P Pocket to suit Flat File Powder Coated in Panel shade Pocket is welded on the inside of the door

Frame for 19" Rack

Material : 2.50mm, Powder Coated

Part # 015 height finish

For all Date communication and Teleperm Racks

Ex. 015 2000P Frame 19" Full Height for 2000H panel, Powder Coated in Panel shade

For partial height Racks specify height in mm

Lockable Handle

Imported From W.Germany

Part# 016 height finish

With lockable swing handle for individual or common key. Keyless option available

Ex. 016 com B Lockable Handle with Common Key in Black moulded finish

key type : ind = individual; com = common; nok = keyless

CABLE TRAYS

Pre galvanized steel sheets (GP) for excellent finish and superior corrosion resistance
Rigid yet light weight design permits easy installation at difficult locations
Best corrosion resistance as on line galvanizing is process-controlled at Steel Mills
Easy solutions to all varying needs
Readymade solutions for ascends, descends, bends, reducers or junctions
Easy 'place-on-top' type lid
Lead time shorter than you can imagine..3days if you are in a hurry

Cover

Light weight and economical covers, not only for main Cable Trays but also for all accessories listed below ensure a rodent proof, vermin proof, and lizard restricted concealment

Couplers

Cleverly designed couplers provide flexible yet sturdy coupling during installation

Extra coupler

Additional 3mm thick tie bar where additional reinforcement needed

Bend Horizontal

Like a true highway, your cable tray can take a left or right 90 degree bend

Bend Down

To bring down cables to a level lower than it current run

Bend Up

To raise the running level of cables for further journey

Horizontal Tee

True to highway concept, these Tees provide solutions to merging or parting cable

Reducers

As the cable bunches proceed away from feeder end, reduced quantity / quantum of cables calls for lesser width Cable Tray for subsequent length. Reducers offer easy solutions

Universal Joint

Easy solutions if ascend or descend of cable tray need to be at an angle different than 90 degrees. This simple and flexible attachment offers total solutions.

Grout Support

Supports Cable Trays When run at ground level

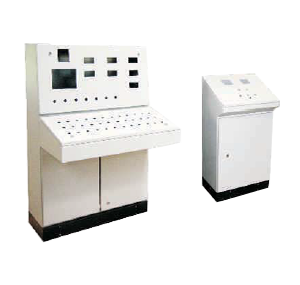

CONTROL DESKS

Wide range of shapes under one roof
Easy accessibility from all sides
Drawer for key board & mouse optional
Gland Plates in any thickness as needed, including aluminum
Adjustable support members

Control Desks - Various Types

Standard Widths
500W	600W;	800	Single Leaf Door
900W	1000W;	1200	Double Leaf Door
1500W	1600W;	2000	Four Leaf Door

Specification Sheet
Material	1.6 mm sheet steel
Surface Protection	Power coated RAL 7032 or RAL 7035
Mounting Plate	GP or Zinc Plated
Protection Class	IP54

COMPACT BOXES

Wide range of sizes
Front Door on hinges or screw-on cover is optional
Easy solutions to varying needs
Gland Plates in any thickness as needed, including aluminum
Chrome plated single point locking system
Chrome plated single point locking system
Zn plated Mounting Plate
Several accessories developed for indoor/outdoor mounting

Specification Sheet
Material	1.6 mm sheet steel
Surface Protection	Powder coated RAL 7032 or RAL 7035
Mounting Plate	GP or Zinc plated
Protection class	IP54 or IP66 as required

W	H	D : Options
200	200	135	160
200	300	135	160
250	250	135	160
250	300	135	160
300	300	160	210
300	400	160	210

W	H	D : Options
400	300	160	210
400	400	160	210
400	500	160	210
500	400	160	210
500	500	160	210
500	600	160	210

W	H	D : Options
600	600	210	310
600	500	210	310
600	600	210	310
600	800	210	310
600	1000	210	310
800	500	210	310

W	H	D : Options
800	600	210	310
800	800	210	310
800	1000	210	310
800	1200	210	310
1000	1000	210	310
1000	1200	310	360

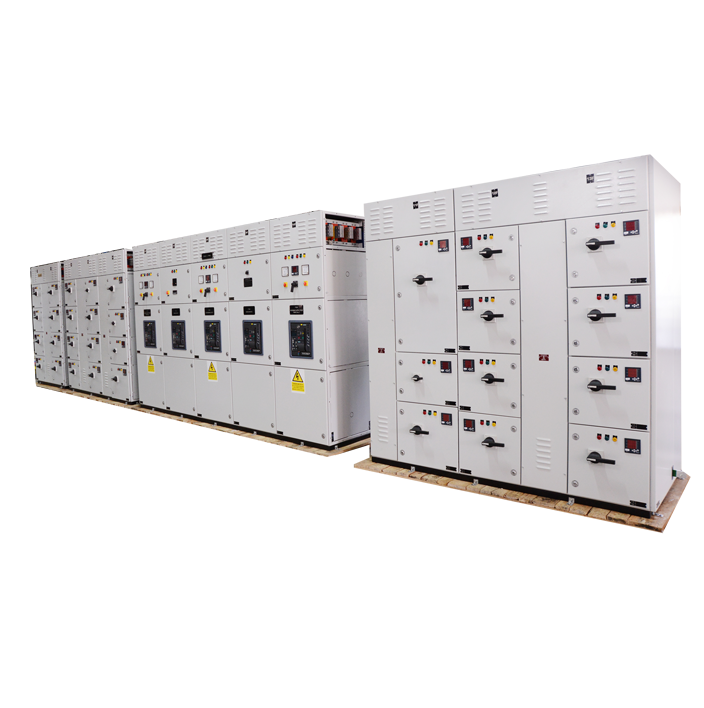

'M' SERIES PANELS

MCC and PCC panels typically are tailor made jobs to suit the demand of a specific situation. Most panel manufacturers world wide tend to restrict the user with their standardized designs.

We don't

We believe we must offer solutions that effectively meet your customer's specifications. and our this service is rendered within our normal delivery period of 3 Weeks. In our endeavor we effectively employ modern computerized design facilities

'M' Series Salient Features:

All Panels coupled together ensuring IP54 class
Individual Panels Amy be in Widths of 500mm; 600mm; 750mm; 800mm; 850mm; 900mm; 100mm or 1200mm. if you have any requirement outside this wide range, just inform us. We will design one for you
Selecting width of vertical Cable Alley and Bus bar Chambers is your prerogative, We Cause no restrictions
Horizontal Bus Bar Chamber can be provided on top end, bottom end or at the rear of the Panel as needed
Though our designs pose no restrictions, depths generally patronised by our customers are 400D; 500D; 600D; 800D with Single Front or Double Front
Breaker Panels may be with 1000D or even 1200D
Front removable Mounting Plates in each Feeder compartment
Easy solutions for rear end bus bars
Vertical cable chamber / bus chambers easily shrouded
Gland Plates in any thickness as needed, including aluminum
Modular roll-on Plinth permits shifting of panels at site on rollers/pipes where overhead crane facilities are not available at the time of installation. Lifting hooks are, in any case, provided
